How To Install KODI On a Raspberry Pi 3


Installing Kodi on a Raspberry Pi 3 is a easy task with the right tools. It is also one of the more fun and useful projects for the Pi 3.

The Pi 3 handles Kodi very well and is something many can do for a cheap Kodi setup. If you have setup a Pi 2 with Kodi than the installation is the same.






There are two main install packages to install Kodi to a RasPi 3, OSMC and OpenELEC.

Which one is used is a preference, OSMC has a installer that make it easier while OpenELEC needs image writing software. There is free image writing software so both are free to download and install.

Below are the steps to install Kodi to a Raspberry Pi 3 using OSMC or OpenELEC.

Things Needed:
Raspberry Pi 3
HDMI Cable
Power Supply
A controller such as a USB mouse or keyboard.
Compatible Micro SD Card 8GB or Bigger. (32GB Max)

If you already have all the extra components such as a HDMI cable, SD-Card, and power supply than the only the RasPi 3 board will be needed.

If you don’t have all the extras than a whole kit can be bought.
CanaKit Raspberry Pi 3 Complete Starter Kit – 32 GB Edition


A SD-Card writer will be needed. If your computers are like mine and dont have a Micro-SD Card Writer than there are cheap USB to Micro-SD card writers.

I bought this SD-Card Writer from Amazon and it is cheap and works good.
IOGEAR SD/MicroSD/MMC Card Reader/Writer, GFR204SD


How To Install KODI On a Raspberry Pi 3 Using OSMC

1…

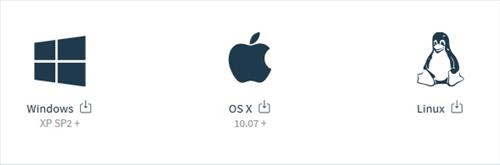

OSMC can be downloaded as a image file or with a installer program. Using the installer program is quick and easy, simply download the right installer for what you will be writing to the SD-Card with. For example if your writing the files with Windows than download the Windows installer.
how-to-install-kodi-on-a-raspberry-pi-3-using-osmc-download
Download the latest OSMC Raspberry Pi build here https://osmc.tv/download/

2…
Insert a SD-Card to write to, and run the OSMC Installer
how-to-install-kodi-on-a-raspberry-pi-3-using-osmc

3…

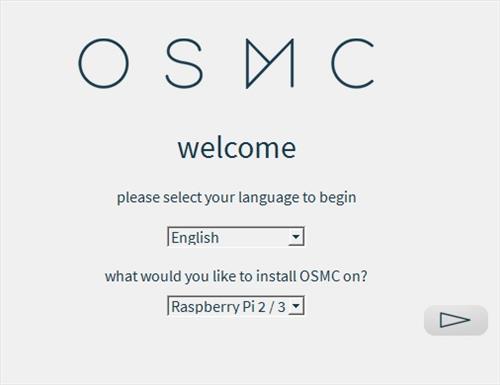

Select the language to be used and Raspberry Pi 2/3 from the drop down box.
how-to-install-kodi-on-a-raspberry-pi-3-using-osmc-step-3

4…
Select the build version. Choosing the newest Build is best.
how-to-install-kodi-on-a-raspberry-pi-3-using-osmc-step-4

5…

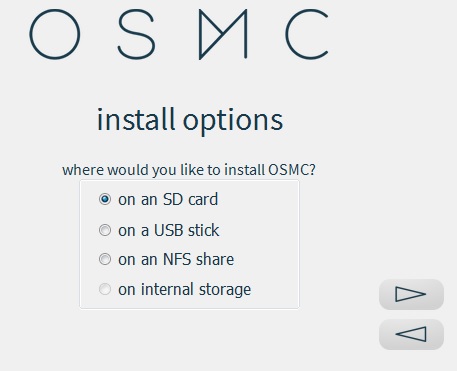

Select the media to write the package to. Here a SD-card is being used but a USB flash drive can also be used.
how-to-install-kodi-on-a-raspberry-pi-3-using-osmc-step-5


6…
There is a option to setup the wireless.
how-to-install-kodi-on-a-raspberry-pi-3-using-osmc-step-6


7…

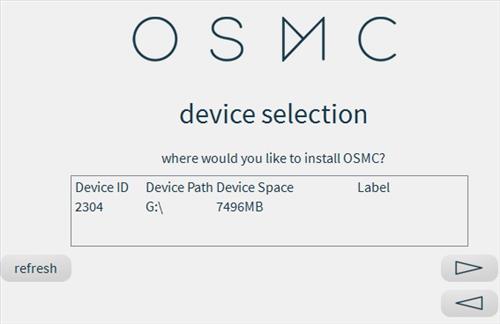

Check the drive the package will be written to is correct and click it.
how-to-install-kodi-on-a-raspberry-pi-3-using-osmc-step-7

8…

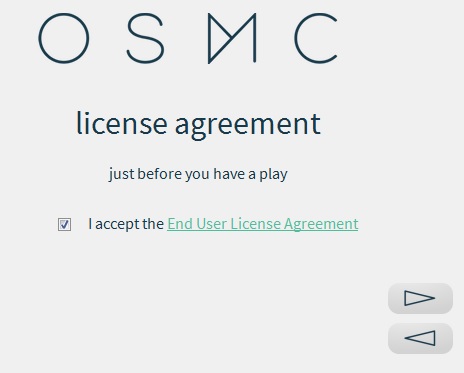

Accept the term agreement
how-to-install-kodi-on-a-raspberry-pi-3-using-osmc-step-8

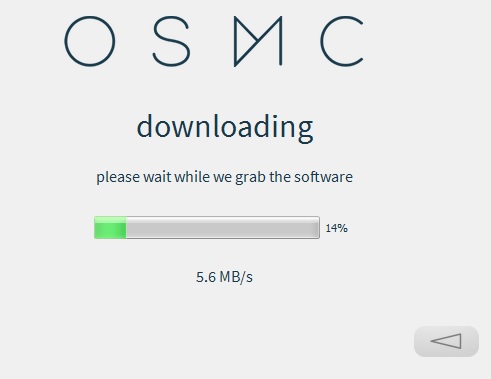

9… It will download the package to install
how-to-install-kodi-on-a-raspberry-pi-3-using-osmc-step-9

10… The OSMC Kodi package will than be written to the SD-Card.
how-to-install-kodi-on-a-raspberry-pi-3-using-osmc-step-10

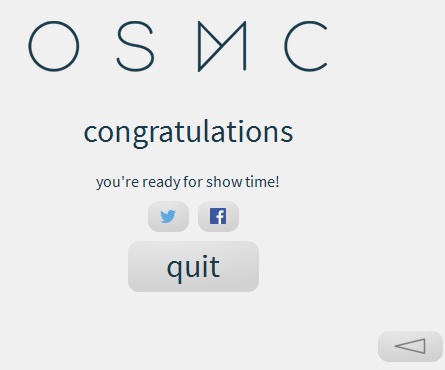

11… When its done writing the package it will say Congratulations, and the SD-Card ready to be installed into the RasPi.
how-to-install-kodi-on-a-raspberry-pi-3-using-osmc-step-11

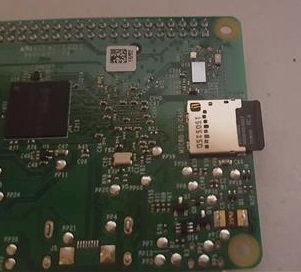

12… Insert the SD-Card into the Raspberry Pi
osmc-raspi-setup-sd-card

13…
Plug in the all the cables. The HDMI goes to a TV or Monitor. Here a Ethernet cable is plugged in from the router for internet, WiFi can also be used. A way to control it is needed such as a old USB keyboard and mouse.
osmc-raspi-setup-plugin-cables
Once the cables are setup plug in the power and it will boot up.

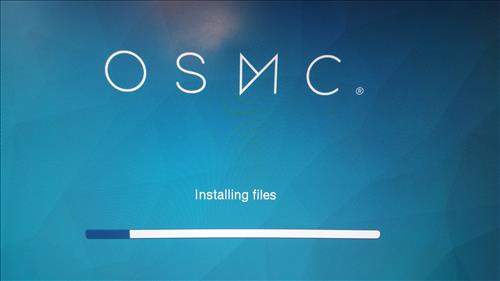

14… It will start the setup and finish the install
osmc-installing-file

15… It will ask some basic setup questions such as language and skin. The OSMC skin can be used or the default Kodi Confluence skin for the standard Kodi interface.
osmc-kodi-setup-done-11

Kodi will now be installed to your Raspberry Pi, the next step is to setup add-ons which give it functionality.

Read Here for How To Install Add-ons and Stream Movie and TV Shows.






How To Install KODI On a Raspberry Pi 3 Using OpenELEC

1…
A Pre-built Kodi Image file is needed to be written to the SD-Card.

Download OpenELEC Image file here. http://openelec.tv/get-openelec

They keep changing the layout of the download page, simply look for Raspberry Pi2 and Raspberry Pi3 Image files. RasPi 2 Builds work fine on the RasPi 3.

2…
After downloading the Image file it needs to be extracted. The file will be in a .GZ file format.

A Window based computer does not come with a built-in way to extract a.GZ file.

WinRAR or similar is needed to extract the file.

WinRAR can be downloaded here. http://www.rarlab.com/download.htm
How To Install KODI On a  New Raspberry Pi 3 For a Fun Project


3…
Once the file is unzipped than it is ready to be written to the SD-Card.

I use Win32 Disk Imager to write files if you already have Image writing software then use it.

Here is the download to Win32 Disk Imager. https://sourceforge.net/projects/win32diskimager/

Insert your SD-Card into a SD-Card writer slot and open Win32 Disk Imager.

Click the folder icon and point it to were the OpenELEC Image file was extracted.
How To Install KODI On a  New Raspberry Pi 3 Tutorial  Step by Step

Be sure the correct drive is selected to write as Win32 Disk Imager will write to what ever it is set to!!

Once everything is set correctly click the write button and Win32 Disk Imager will write the Image file to the SD-Card.
Install KODI On a  New Raspberry Pi 3 Tutorial  Step by Step

4…
Once the Image is written than the SD-card can be inserted into the Pi 3.
Install KODI On a  New Raspberry Pi 3 Tutorial  Step by Step With Pictures

5…
Plug in all the connections to a TV with a mouse, keyboard or other controller.
Kodi Pi 3 Install

6…
The first time it boots the WiFi or Ethernet need to be setup. I used the built-in WiFi with good results. Using a Ethernet connection maybe necessary for those in a crowded wireless environment or far from the router.
Pi 3 Kodi WiFi Setup


Summary
The Raspberry Pi 3 works very well with Kodi. The built in WiFi while not the best works well enough and streamed movies fine.

The Pi 3 is a big improvement over the Pi 2. The Pi 2 also will run Kodi but does freeze at times.

To get the most out of Kodi a repository needs to be added which will contain all the popular add-ons.

The install for repository and add-ons will be the same across all hardware platforms including the Raspberry Pi 3.

Here are tutorials for how to install add-ons into Kodi

Step by Step Kodi Jarvis and Exodus Install

A Guide To Kodi and Watching Free Movies and TV Shows: Updated 2016
